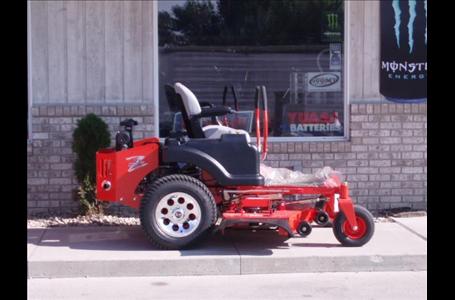

PUP IS BRED WITH THE PROFESSIONAL BITE OF OUR LARGER MOWERS, IT GRABS HOLD OF YOUR YARD LIKE A DOG WITH A BONE.
Bred with all the standard features of its larger siblings, the Pup offers our widest range of deck options—making it the clear-cut choice for lawn care professionals and homeowners alike. Incorporating our patented Swing-Away™ fullaccess design, full half-inch front wheel forks and quarter-inch welded steel deck, the Pup’s size is not
only practical—it’s practically indestructible. And all at a price that makes it the best-of show in this class of zero-turn mowers.

Engine
Engine 23HP Air-Cooled Vanguard
Cylinders V-Twin
Displacement 627cc
Maximum Torque 33 ft. lbs. @ 3000 RPM
Fuel Type Unleaded Gasoline (87 Octane or higher)
Fuel Capacity 14.5 Gallons
Cooling Air
Starting System 12 Volt
Charging System 20 Amp
Hydrostatic System Oil 20W50 Motor Oil


Transmission
Ignition Electronic
Transmission Dual Hydrostatic
Drive (Pump) 10 cc Hydro-Gear V-Belt from Engine Crankshaft
(Wheel) 15 cu. in. High Torque Hydrogear Motors
Pumps (2) Hydro-Gear 10 cc Pump


Chassis
Tires Front 13 x 6.5-6 Smooth Tread
Tires Rear (48" & 52") 23 x 10.5–12 Turf Tread
(60") 24 x 12–12 Turf Tread
Steering Dual Lever Steering, Independent Control
Turning Radius Zero Degree, Turns Within Unit Length


Dimensions
Blade (48") 1, 4" x 2 1/2" x 16 1/2", High Lift, Heat Treated
(52") 1, 4" x 2" x 18", High Lift, Heat Treated
(60") 1, 4" x 2 1/2" x 20 1/2", High Lift, Heat Treated
Weight (48") 1050 lbs
(52") 1075 lbs
(60") 1100 lbs
Height 46"
Width (48") 49 1/2"
(52") 57"
(60") 61 1/2"
Length 75"


General Information
Cutting Width 48"; 52"; 60"
Cutting Height 1.5"–5" with Deck Height Control System
Lift and Height Adjustment Instant Lift Electronic Actuator
Anit-Scalp Rollers (48") 4 Total (1 on each Corner, 2 in Rear)
(52" & 60") 6 Total (2 Front, 2 Rear, 1 On Each Corner)
Hydraulic Filter 25 Micron, Replaceable Spin-On Type, 1 Per Pump
Ground Speed (Forward) 0-10 mph
Parking Brake Drum Brake


Hydraulics
Hydraulic Coolers (2) 6" Cooling Fan per Unit
